AS-BUILT : HISTORIC

WITH A SITE VISIT AND 3D SCAN...

WE SCAN THE EXTERIOR OF AN EXISTING 60 YEAR OLD CHURCH STRUCTURE AND THE SURROUNDING SITE.  WE ARE SURE TO CAPTURE STRATEGIC POINTS ACROSS THE SITE TO CAPTURE ALL DATA ON SITE.

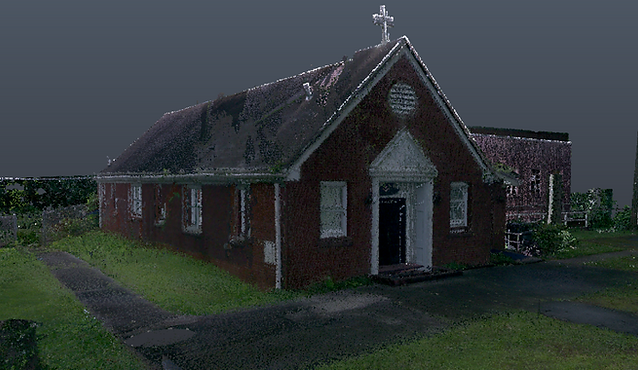

WE THEN REGISTER THE SCANS AND CREATE A 3D POINT CLOUD MODEL TO IMPORT INTO REVIT...

THIS PROCESS IS IN-OFFICE, AND RESULTS IN A 3D POINT CLOUD MODEL THAT CAN BE IMPORTED INTO A VARIETY OF 3D SOFTWARE PLATFORMS.

As Built Photo 2024 - 12.PNG
As Built Photo 2024 - 08.PNG
As Built Photo 2024 - 09.PNG

AN ADDED FEATURE IS OUR ONLINE VIRTUAL WALKTHROUGH...

IN ADDTION TO THE POINT CLOUD DATA AND AS-BUILT MODEL DRAWINGS, WE PROVIDE AN ONLINE PORTAL FOR VIRTUAL WALK-THROUGHS OF THE EXISTING SPACE, ABLE TO BE UTILIZED BY THE CLIENT, INVESTORS, AND/OR FUTURE DESIGNERS.

As Built Photo 2024 - 10.PNG
As Built Photo 2024 - 11.PNG

THE POINT CLOUD IS TRACED IN REVIT WITH MODELED BUILDING ELEMENTS...

WE TRACE WALLS, FLOORS, WINDOWS, DOORS, ROOFS, CEILINGS, AND ALL OTHER BUILDING COMPONENTS USING TECTONIC ASSEMBLIES IN REVIT IN ORDER TO DELIVER A FULL AS-BUILT REVIT MODEL AND ARCHITECTURAL DRAWINGS, EITHER IN PDF OR CAD FORMAT.

As Built Photo 2024 - 13.PNG
As Built Photo 2024 - 15.PNG
As Built Photo 2024 - 18.PNG
